Smooth Geocell Mat And Geogrid For Civil Engineering

Name: Smooth Geocell Mat And Geogrid For Civil Engineering
Brand: zhongloo
Price: 1 USD

Brand Name : zhongloo

Model Number : geocell

Certification : ISO,SGS,CE

Place of Origin : CHINA

MOQ : 1000pcs

Price : Can be discussed

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 20000 sqm/Day

Delivery Time : 5-8 days work

Packaging Details : pallet

Model NO. : 100-445MM 100-660MM 100-330MM 100-356MM 50-800MM

Product Feature : Corrosion Resistant, Oxidation Resistance, Chemical Stability, Wear-resistant

Product Material : HDPE

Height : 50/75/100/150/200mm

Common Color : Black/Green/Orange

Welding Distance : 330-1000mm

Product Peel Strength : 140n/10cm

Transport Package : Plastic Packing Belts or Pallets

Surface : Smooth/Textured

Specification : 1.1-1.8mm

Contact Now

1) Introduction

Geocell is also called "cellular confinement systems" academically .It is widely used in construction for erosion control, soil stabilization on flat ground and steep slopes, channel protection, and structural reinforcement for load support and earth retention.Typical cellular confinement systems are geosynthetics made with ultrasonically welded high-density polyethylene (HDPE) strips or PP and expanded on-site to form a honeycomb-like structure—and filled with sand, soil, rock, gravel or concrete.

Geocell strip widths, hence the on-site height, come in various sizes from 50 to 300 mm. Geocell walls are usually made from textured or structured polymer sheet so as to increase frictional resistance against the infill soil from displacement. Geocell are made of HDPE, PP, low-density polyethylene and nonwoven heat-bonded geotextiles. Geocell walls are typically perforated so as to allow for drainage from one cell to another. On steep slopes Geocell may have a tendon or cable extending through the central region up the slope and anchored to, or within, a concrete plinth so as to resist downgradient sliding of the system. The backfilling of Geocell on long and wide slopes is quite labor-intensive. Construction equipment called phneumatic sand-slingers or stone-slingers have been used advantageously.

2) Application

Roadway load support Steep soil slope and channel protection Earth retention Reservoirs and landfills Sustainable construction

Product Parameters

Smooth Geocell Mat And Geogrid For Civil Engineering

Remark

Above is just regular product data. We can do accroding to prjects' requirments.

Case Show

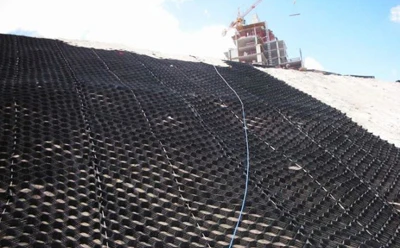

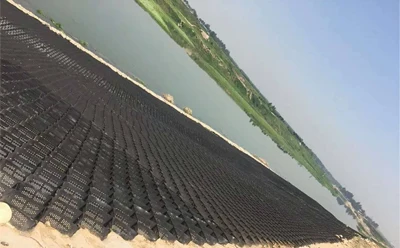

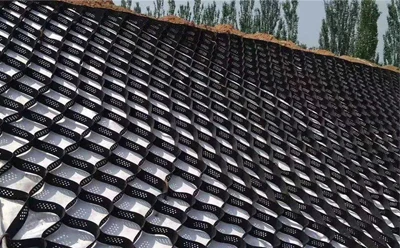

Geocells are widely used in retaining wall,ground reinforcement,embankment protection, slope protection etc
